SS 304/304L Anchors
Stainless Steel 304 / 304L Anchors Manufacturer in Vadodara, India
Stainless Steel 304 Anchors, SS 304 Anchor, Stainless Steel 304L Anchors, SS 304L Anchors, UNS S30400 Anchors Dealer, SS 1.4301 Anchors, Stainless Steel S30403 Refractory Anchors Manufacture in Vadodara, India.
GreatBolt Industries offers the best quality refractory anchors made from different stainless steel and popular among them is Stainless Steel 304/ 304L Anchors. They are useful in various industries for brick installations and retaining castable due to their dimensional accuracy, durability, and corrosion-resistant.
We offer standard as well as customized shapes of anchors that can be easily fixed with the help of welding or thread. The Stainless Steel 304/ 304L Anchors contain only 8 percent of nickel and 18 percent of chromium. They are the main elements in the alloy that provide excellent fabrication, formability and welding properties. Industrial applications where anchors are useful include petrochemical, oil mills, chemical plants and more. For special fabrications, brick fixings and other these anchors are of high importance.
Applications like moderate mechanical shock, thermal cycling and more uses anchors made of stainless steel 304/304L. All standard welding technologies can be used to weld these anchors of excellent qualities. Moreover, we offer Y, V and UV, ceramic fiber fixings, crook anchors, ceramic anchor brick clips, welded and twisted anchor, shelf and PV anchor, and more. All such anchor types are useful in processing equipment and furnaces.
The anchor specification includes sturdy construction, reliable performance, and great tensile strength. Also, they can withstand high tensions, possesses optimum strength and resist rust. These features are due to the use of SS 304/304L grade for manufacturing the anchors. The anchors can be used up to the 1650 degree F or 899 degrees C temperature where it does not undergo oxidation. Moreover, scaling at this temperature is not possible due to its resistant properties.
Stainless Steel 304 Y Anchor, SS 304 U Anchors, Stainless Steel 304L V Anchor, DIN 1.4306 / 1.4307 Crook Anchors, ASTM A193 SS Anchor, Stainless Steel 304 Sleeve Anchor, SUS 304 Wedge Anchors Exporter in India.
Stainless Steel 304 U Hooks, SS 304L Resin Anchor Bolt, Stainless Steel 304L Refractory Anchors Stockholder, SS 304L Y Anchors, Stainless Steel 304 V Anchors Supplier.
The ability to work under severe corrosive conditions is due to the use of SS 304L which has carbon in low quantity. However, for applications like stress relief SS304L is not useful. But the low carbon content makes them useful in applications where the need for carbide precipitation is highly desired.
Stainless Steel 304/ 304L Anchors are well-tested before shipping to the clients. Tests like hardness test, flaring test, PMI, IGC, ultrasonic and more are important for anchors. All these are performed by the experts. Also, the packaging is done using good quality packaging materials.
Stainless Steel 304 / 304L Anchors Types
Stainless Steel 304/304L Y Anchor
Stainless Steel 304/304L U Anchor

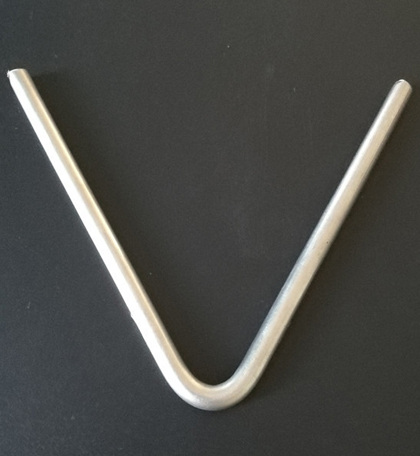

Stainless Steel 304/304L V Anchor
Stainless Steel 304/
304L Crook Anchor
Stainless Steel 304/
304L Sleeve Anchor
Stainless Steel 304/
304L Wedge Anchor
Stainless Steel 304/304L U Hooks
Specification of SS 304 / 304L Anchor
| Standard : | ASTM A /SA 193 / 194 |
| Dimension : | ASTM, DIN, BS, GB, IS and all International Standards |
| Thickness : | 2 to 12 mm |
| Heat Treatment: | Annealing, Stress Relieving, Case Hardening, Quenching and Tempering. |
| Type : | Y Anchor, U Anchor, V Anchor, Crook Anchor, Sleeve Anchor, Wedge Anchor, U Hooks, Resin Anchor Bolt etc. |
Other Properties of SS 304 / 304L Anchor
Equivalent Grades for SS 304 / 304L Anchor
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 304 | S30400 | 1.4301 | Z7CN18-09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| SS 304L | S30403 | 1.4306 / 1.4307 | Z3CN18-10 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 3304S11 | 03Х18Н11 |
SS 304 / 304L Anchor Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 Max | 2 Max | 0.75 Max | 0.045 Max | 0.030 Max | 18 - 20 | - | 8 - 11 | - |
| SS 304L | 0.035 Max | 2 Max | 1.0 Max | 0.045 Max | 0.030 Max | 18 - 20 | - | 8 - 13 | - |
Mechanical Properties of SS 304 / 304L Anchor
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35% |
People also search for DIN 1.4301 / 1.4306 / 1.4307 Anchor
A wide range of the stainless steel bs 304s31 anchors price list, ss 304 y anchors, ss 304l u anchors, ss 304l anchors price, stainless steel 304 anchors distributors, stainless steel din 1.4301 v anchor, ss 304 crook anchor, ss s30400 sleeve anchor, ss 304l anchors exporter, ss 304l wedge anchors suppliers in india, astm a194 304 ss u hooks, ss 304 refractory anchors, ss s30403 resin anchor bolt with metric fine pitch, din 1.4301 refractory anchor, ss 1.4306 hammer drive anchor, stainless steel 1.4307 toggle wings, ss 304 hollow wall anchor, ss 304 refractory anchors supplier, ss 304l anchors suppiler in india, 304 stainless steel anchors dealer, ss 304 anchors suppliers in vadodara, ss 304 crook anchor, ss 304l anchor manufacturer in gujarat, uns s30403 anchors supplier in india.
Other Stainless Steel 304 / 304L Anchor Types
Hammer Drive Anchors, Lag Screw Shields, Toggle Wings, Plastic Anchors, Flat Head Sleeve Anchors, Acorn Nut Sleeve Anchors, Hex Nut Sleeve Anchors, Drop-In Anchors, Hollow Wall Anchors, Hollow Wall Drive Anchors, Hammer Drive Mushroom Head Anchors, Hammer Drive Flat Head Anchors, Concrete Screws, Toggle Wing Bolts.
Quality Assurance of SS 304 / 304L Anchors
Stainless Steel 304/304L Anchors are manufactured and controlled to international standards such as ASTM, ASME, BS, MSS, EN, DIN or WERKSTOFFE. Our products undergo stringent quality tests before they are dispatched.
