Incoloy 825 Threaded Rods
Incoloy 825 Threaded Rods Manufacturer in Vadodara, India
Incoloy 825 Industrial Threaded Rod, Incoloy 825 Threaded Rod, Inconel 825 Threaded Rod, UNS N08825 Threaded Rod Dealer, DIN 2.4858 Threaded Rod, Alloy 825 Threaded Rods, ASTM F467 Incoloy 825 Threaded Rod, Inconel Alloy 825 Threaded Rods, ASTM F468 825 Incoloy Alloy Threaded Rod Manufacture in Vadodara, India.
GreatBolt Industries being the world’s manufacturer, supplier and exporter of pipe fittings are also supplying the wide ranges of Incoloy 825 Threaded Rod. All the global clients prefer the threaded rods that are manufactured in our units. We are using all the national and international quality standards to develop the superior quality of Incoloy threaded rods.

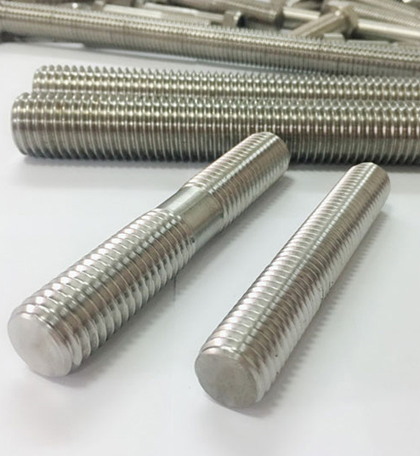

Threaded rods are the fastening bars that are threaded along its length. The direction of the thread is the important specification that the customer has to consider. Threads in the rod are present in the left, right or on both the hands. However, the rods and threads on that are selected according to the applications that you are using and working on. It is also considered as the type of metal fasteners that are separated into two pieces. They are sued in resembling they screws. But they are mostly longer and thicker. The direction of threaded rods is also one of the things that matter when used in the applications.
Incoloy 825 Half Threaded Rod, Incoloy® Alloy 825 Threaded Rods, Incoloy 825 Full Threaded Rod, 825 Incoloy Half Thread Studs, 825 Incoloy Alloy Full Thread Studs, JIS NCF 825 Threaded Rods Exporter in India.
825 Incoloy Tap End Threaded Rods, Alloy 825 Metric Threaded Rods Supplier, Incoloy 825 Fully Threaded Rods, Incoloy Alloy 825 Partially Threaded Rods, Incoloy 825 Threaded Rod Stockholder, Nickel Alloy 825 Double End Threaded Rods.
Moreover, the threads of the rods are very essential part as they are used to join two things together. Nuts, bolts and other types of pipe fittings are easily screwed on the rods. The rods manufactured can easily tackle all the pressure that occurs in the working environment. These threaded rods are mostly used in the construction, automotive, and various manufacturing industries. The rods are having great tensile strength due to which it is stable in the environmental temperature.
Alloy 825 Threaded Rod is exhibits various characteristics. However, this is because of grade alloy present in manufacturing the rods. Corrosion resistance is one such property that is present in the thread rods due to the contents of carbon. Along with corrosion resistance property hardness, stability in high temperature, high ductility, great durability, crevice corrosion resistance, and many others are some of the characteristics that are inherited in the manufactured thread rods. For ensuring the customers about the quality of threaded rods that are manufactured, there are many tests that are performed. Incoloy 825 Threaded Rod moves through hardness, hydrostatic, ultrasonic, positive material identification, micro, macro and many more are some of the tests that are performed. The rods are also packed with the wooden boxes.
Incoloy 825 Threaded Rods Types
Incoloy 825 Full Threaded Rod
Incoloy 825 Half Threaded Rod
Incoloy 825 Full Threaded Studs
Incoloy 825 Half
Thread Studs
Incoloy 825 Partially Threaded Rod
Incoloy 825 ACME Threaded Rod
Incoloy 825 Metric Threaded Rod
Specification of Incoloy 825 Threaded Rod
| Standard : | ASTM F468, ASTM F467 |
| Dimension : | ASTM, DIN, BS, GB, IS and all International Standards |
| Size : | M6 to M52 & 1/4" to 2" |
| Length : | 1000mm to 3000mm & 1feet to 12feet |
| Standard : | DIN975 |
| Materials / Grades : | Incoloy 825 |
| Finish : | Zinc Plated, Plain, Hot Dip Galv. & Yellow Zinc |
Other Properties of Incoloy 825 Threaded Rod
Equivalent Grades for Incoloy 825 Threaded Rod
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
Incoloy 825 Threaded Rod Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 - 3.00 | 22.00 min | 38.00 - 46.00 | 19.50 - 23.50 | 0.02 max | 0.06 - 1.20 |
Mechanical Properties of Incoloy 825 Threaded Rod
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30% |
People also search for DIN 2.4858 Threaded Rod
Incoloy® alloy 825 all thread rods, inconel 825 threaded rods, incoloy 825 threaded rod, incoloy 825 half threaded rod, incoloy 825 half thread studs exporter, alloy 825 threaded rod supplier in india, incoloy alloy 825 threaded rod manufacturer in maharashtra, astm f467 inconel 825 threaded rods, incoloy 825 threaded rods suppliers in india, incoloy 825 thraeded rods suppliers in mumbai, a wide range of the incoloy jis ncf 825 threaded rods price list, astm f468 825 incoloy threaded rods, 825 incoloy alloy threaded rods, inconel® alloy 825 threaded rods suppiler in india, nickel alloy 825 threaded rods supplier, alloy 2.4858 full threaded rod, astm f467 incoloy alloy 825 threaded rods, inconel 825 threaded rod distributors, incoloy 825 threaded rod price, 825 incoloy alloy coil rods dealer, incoloy n08825 full thread studs, incoloy 825 metric fine pitch threaded rods, incoloy 825 threaded rods.
Other Incoloy 825 Threaded Rod Types
Fully Threaded Rods, Partially Threaded Rods, Tap End Threaded Rods, Double End Threaded Rods, Fine Pitch Threaded Rods, Metric Threaded Rods, All thread Rods, Heavy Threaded Rods, Acme Threaded Rods, Trapezoidal Threaded Rods, Coil Rod, Threaded Bars.
Quality Assurance of Incoloy 825 Threaded Rod
Incoloy 825 Threaded Rod are manufactured and controlled to international standards such as ASTM, ASME, BS, MSS, EN, DIN or WERKSTOFFE. Our products undergo stringent quality tests before they are dispatched.
