Monel 400/K500 Forgings
Monel 400 / K500 Forgings Manufacturer in Vadodara, India
Monel Alloy 2.4360 Forgings, Monel 400 Forgings, Monel Alloy 400 Forging, UNS N04400 Forgings Dealer, Monel K500 Forgings, Monel Alloy K500 Forgings, Monel N05500 Forgings Manufacture in Vadodara, India.
GreatBolt Industries is well known as the biggest manufacturer and supplier in the competitive market. We are an exporter and stockier of Monel 400/k500 Forging. We manufacture our product in different shapes, lengths, thickness, and sizes, also in different dimensions and diameters. However, we supply our product according to our customer’s demand. We are used different specifications and standards.
The Monel alloy is basically a combination of 67% of nickel and copper element with other chemical elements. The remaining elements are carbon, silicon, iron, and manganese. Monel is a group of nickel but it is stronger than a pure nickel. The addition of other chemical elements with nickel increases its resistance property.
Monel 400/k500 forging is used in high-temperature applications. The Monel 400 forging is a copper-nickel alloy and has high strength. This forging carries many excellent features like good ductility, high corrosion resistance in acid environment, good conductivity to thermal and electrical, and it can be become hardened by cold working process.
Monel grade 500k is a modified form of grade 400, with the addition of a small amount of aluminum and titanium. The addition of titanium and aluminum increases its strength and hardness. The Monel grade 500 k resist to corrosion cracking stress and crevice and pitting corrosion. It is also resistant to corrosion in oxidizing and reduces the environment. The Monel 400/500k block forgoing is known for its bearing capacity and bear high temperature. It has a good heat resistance property. Monel forging comes from a different form like rectangular, square and round forging, etc.
Monel 400 Bow Shackle, DIN 2.4375 D Shackles, Monel 400 Chain Link, Monel Alloy 400 Chain, Monel K500 Chain Link, ASTM B564 Monel Alloy Forgings, Alloy 400 Forgings Exporter in India.
Monel K500 Forgings Stockholder, Alloy K500 Bow Shackle, Monel 400 D Shackles, Monel Alloy K500 Twist Link Chains, Monel 400 Forgings Supplier.
The application of Monel 400/k500 Forging are - it is used in many industries such as chemical and petrochemical industry, power generation plant, nuclear reactor, etc. Monel forging is also used in seawater application, shipbuilding equipment, marine equipment, boiler equipment, etc. It is used in chemical process, food and beverage process, surgery equipment, etc as well.
We apply a different kind of tests like the mechanical test, chemical test, hardness test, toughness test, impact test, eddy current test, positive material test, flaring test, flattening test, etc for checking the quality of a product. We also offer the best packaging service in form like bundle form, plastic wrap, plastic bag, etc.
Monel 400 / K500 Forgings Types
Monel 400/K500
Chain
Monel 400/K500
Chain Link
Monel 400/K500

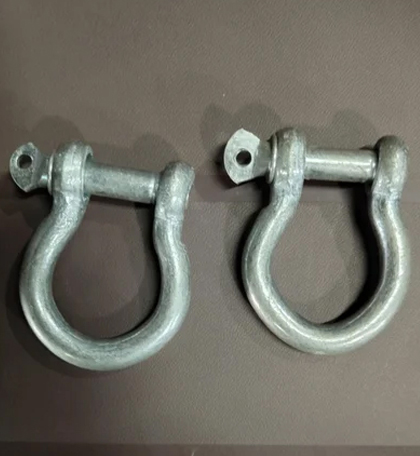

D Shackle
Monel 400/K500
Bow Shackle
Monel 400/K500
Rolled Ring
Specification of Monel 400 / K500 Forgings
| Standard : | ASTM / ASME B564 / SB564 |
| Dimension : | ASTM, DIN, BS, GB, IS and all International Standards |
| Forged Between : | 2300/1700ºF (1260/930ºC) and air cooled |
| Severe Reductions : | Ingot breakdown, Roll forging, Drawing, Blocking and Backward extrusion - 2300ºF (1260ºC). |
| Moderate Reductions: | Finish forging and upsetting - 2200ºF (1200ºC). |
| Slight Reductions : | Coining, restriking and end upsetting - 2050ºF (1120º). |
| Type : | Chain Link, D Shackle, Bow Shackle etc. |
Other Properties of Monel Alloy 400 / K500 Forgings
Equivalent Grades for Monel 400/K500 Forgings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
| Monel K500 | 2.4375 | N05500 | - | - | - | - | - |
Monel 400/K500 Forgings Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.030 Max | 2.00 Max | 0.50 Max | 0.024 Max | 28.00 - 34.00 | 2.50 Max | 63.00 min |
| Monel K500 | 0.025 Max | 1.5 Max | 0.5 Max | 0.010 Max | 27.00 - 33.00 | 0.5 – 2 | 63.00 min |
Mechanical Properties of Monel 400/K500 Forgings
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 |
8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40% |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20% |
People also search for DIN 2.4360 / 2.4375 Forgings
A wide range of the monel 400 forgings price list, monel alloy 400 chain links, monel k500 d shackles, monel alloy k500 forgings price, monel 400 forgings distributors, monel din 2.4360 bow shackle, monel 400 open die forging, monel alloy N04400 closed die forging, monel alloy k500 forgings exporter, monel alloy k500 chain links suppliers in india, astm b564 400 monel forged discs, monel 400 forged circles, monel n05500 d shackle with metric fine pitch, din 2.4360 double loop chain, monel alloy 2.4375 forged circles, monel 2.4375 seamless rolled rings, monel alloy 400 shafting & bars, monel alloy 400 crane hooks supplier, monel k500 forgings suppiler in india, 400 monel forgings dealer, monel 400 forgings suppliers in vadodara, monel 400 bow shackle, monel k500 forgings products manufacturer in gujarat, uns n05500 forgings products supplier in india.
Other Monel 400 / K500 Forgings Types
Forged Hollow Bars, Forged Flat Bars, Joining Shackle, Safety Chain Shackle, Mandrel Rings, Step Shafts, Single Jack Chain, Seamless Rolled Ring, Lifting Chain, Shafting & Bars, Forged Discs, Open Die Forging, Crane Hooks, Double Loop Chain, Special Bow Shackle w/ No-Snag Pin, Forged Circles, Forged Circular Plates, Closed Die Forging, Anchor Shackle, Long Link Chain, Bolt Chain Shackle.
Quality Assurance of Monel Alloy 400 / K500 Forgings
Monel 400/K500 Forgings are manufactured and controlled to international standards such as ASTM, ASME, BS, MSS, EN, DIN or WERKSTOFFE. Our products undergo stringent quality tests before they are dispatched.
