Inconel 600/601/625/800/825 Anchors
Inconel 600/601/625/800/ 825 Anchors Manufacturer in Vadodara, India
Inconel 825 Anchors, Incoloy Alloy 800 Anchor, UNS N06600 Anchors, DIN 2.4858 Anchors, Inconel 625 Anchors Dealer, Inconel 600 Anchors, Inconel Alloy 2.4816 Anchors, UNS N08800 Anchors, Inconel Alloy 601 Anchors, Alloy N06625 Anchors, Incoloy Alloy 800H Anchors, Inconel 800 Refractory Anchors Manufacture in Vadodara, India.
GreatBolt Industries is one of the leading industries in manufacturing, exporting, supplying and stockiest of the product Inconel 600/601/625/800/825 Anchors in the competitive global and domestic market today. All our products in the market are designed after following all the national and international standards of raw materials.
We supply a different range of products in anchors which is why it is a much-demanded product in the market today. In addition to this, it is available in various shapes, sizes, alloys, grades, specifications, designations, thickness, dimensions, etc. The anchors are very popular in alloy- Inconel 600, 601, 625, 800, 825 grades.
Anchors are a very useful device largely used in the marine industries and the seawater industries or application purposes. The reason for which anchors were introduced was because there was a need for a product in the market which can help in the process of stopping the movement of the boats when once attached to a particular point or a place. Generally, anchors are made up of metals to catch ocean floors or seabed.
Anchors comprise of two variant types which offer variant features and are used for two different reasons. The first category of anchors is well known by the name permanent anchors or mooring block. Just like the name suggests permanent anchors are used for the permanent fixing reasons where the boat can be permanently fixed at a place and no movement can take place with the help of such anchors. On the other hand, the other types of anchors are called temporary anchors because such anchors can be kept in the boat for any further use while moving to the Countries Where We Export and thus they are movable with the boat. In addition to this, most of the anchors' customers are there for the temporary anchors.
Inconel 600 Crook Anchors, ASTM F468 Inconel Alloy 800 Anchor, Incoloy 800 Y Anchor, Inconel 625 V Anchor, Inconel 601 Sleeve Anchor, Incoloy Alloy 800H U Anchors, Inconel N06601 Anchors, Incoloy 825 Wedge Anchors Exporter in India.
DIN 1.4876 Anchors, Inconel 800HT Resin Anchor Bolt, UNS N08810 Anchors, Inconel Alloy 601 Y Anchors, Inconel 600 Refractory Anchors Stockholder, Inconel 800H U Hooks, Inconel 800 V Anchors Supplier.
The Inconel 600/601/625/800/825 Anchors are widely used anchor types because they offer some of the great features such as they are reliable products, used for the long term requirements- durable, provides excellent corrosion resistance properties, are restive to high temperature conditions, impenetrability to various aqueous corrosion, high strength, good mechanical properties, and many more.
GreatBolt Industries packs and delivers all its products in wooden boxes to avoid any damage to the products.
Inconel 600/601/625/800/825 Anchors Types
Inconel 600/601/625 Incoloy 800/825

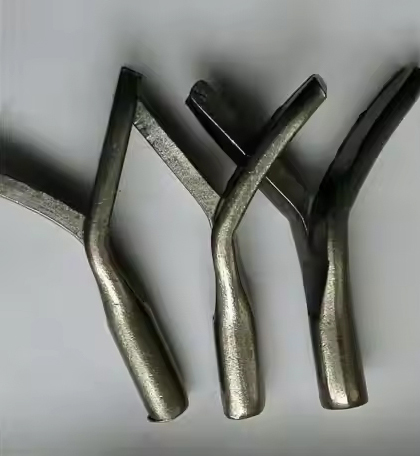

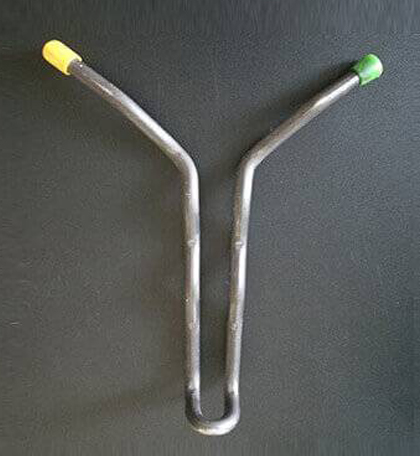

Y Anchor
Inconel 600/601/625 Incoloy 800/825
U Anchor
Inconel 600/601/625 Incoloy 800/825

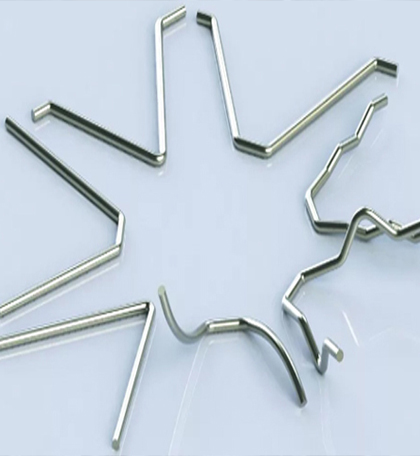

V Anchor
Inconel 600/601/625 Incoloy 800/825
Crook Anchor
Inconel 600/601/625 Incoloy 800/825

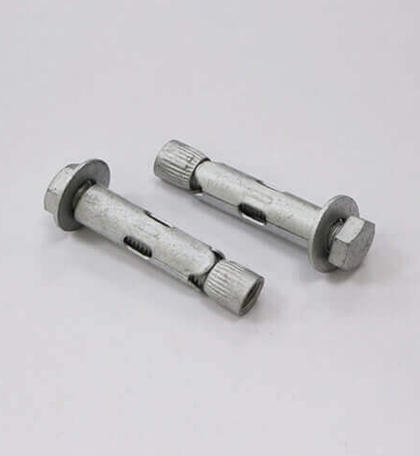

Sleeve Anchor
Inconel 600/601/625 Incoloy 800/825

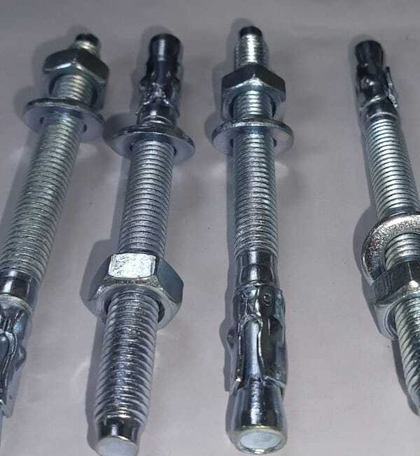

Wedge Anchor
Inconel 600/601/625 Incoloy 800/825

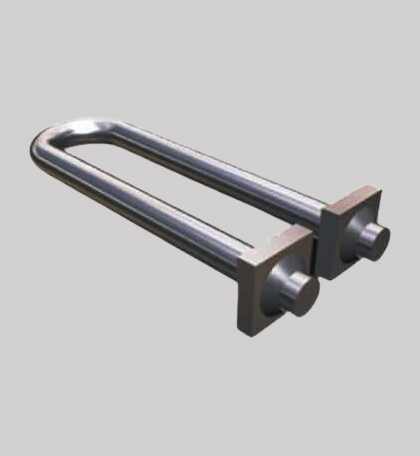

U Hooks
Specification of Inconel Alloy 600/601/625/800/825 Anchor
| Standard : | ASTM F468 / B446, ASME SF468 / SB446, F2281 |
| Dimension : | ASTM, DIN, BS, GB, IS and all International Standards |
| Thickness : | 2 to 12 mm |
| Heat Treatment: | Annealing, Stress Relieving, Case Hardening, Quenching and Tempering. |
| Type : | Y Anchor, U Anchor, V Anchor, Crook Anchor, Sleeve Anchor, Wedge Anchor, U Hooks, Resin Anchor Bolt etc. |
Other Properties of Inconel/Incoloy 600/601/625/800/825 Anchors
Equivalent Grades for Inconel 600/601/625/800/825 Anchors
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe | - |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe | - |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb | - |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
Inconel 600/601/625/800/825 Anchors Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 | - | - |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 | - | - |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 | - | - |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
| 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
Mechanical Properties of Inconel 600/601/625/800/825 Anchor
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40% |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30% |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5% |
| 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30% |
| 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30% |
People also search for Inconel 600/601/625/800/825 Anchor
Inconel 600 anchors dealer, incoloy 825 anchors supplier in india, incoloy alloy 800 crook anchor, inconel alloy 600 hammer drive anchor, incoloy alloy 800 crook anchor, inconel 601 toggle wings, din 2.4816 inconel alloy refractory anchor, inconel alloy 600 refractory anchors supplier, inconel alloy 600 hollow wall anchor, a wide range of the inconel 800 anchors price list, astm b446 inconel alloy 600 u hooks, inconel alloy 600 anchors suppiler in india, inconel 601 y anchors, incoloy alloy 800h refractory anchors, inconel alloy 601 anchors suppliers in vadodara, inconel alloy 625 anchor manufacturer in gujarat, incoloy 825 anchors distributors, inconel alloy 625 anchors price, inconel alloy 825 u anchors, inconel alloy 600 wedge anchors suppliers in india, inconel 1.4876 v anchor, incoloy alloy 800 anchors exporter, inconel alloy 625 resin anchor bolt with metric fine pitch, inconel alloy 800ht sleeve anchor.
Other Inconel Alloy 600/601/625/800/825 Anchor Types
Hex Nut Sleeve Anchors, Concrete Screws, Lag Screw Shields, Hollow Wall Anchors, Toggle Wing Bolts, Hammer Drive Anchors, Toggle Wings, Flat Head Sleeve Anchors, Hollow Wall Drive Anchors, Hammer Drive Flat Head Anchors, Plastic Anchors, Drop-In Anchors, Acorn Nut Sleeve Anchors, Hammer Drive Mushroom Head Anchors.
Quality Assurance of Inconel 600/601/625/800/825 Anchors
Inconel 600, 601, 625, 800 and 825 Anchors are manufactured and controlled to international standards such as ASTM, ASME, BS, MSS, EN, DIN or WERKSTOFFE. Our products undergo stringent quality tests before they are dispatched.
