Inconel 600/601/625/800/ 825 Socket Screw
Inconel 600/601/625/800/ 825 Socket Screw Manufacturer in Vadodara, India
Inconel 601 Socket Screws, Inconel 2.4816 Socket Screw Fastener, Incoloy 800 Socket Screw, Alloy 625 Socket Screws, Alloy 825 Socket Screw, Inconel Alloy 600 Socket Screws, UNS N06625 Socket Screws Dealer, Incoloy 601 Socket Screws Manufacturer in Vadodara, India.
GreatBolt Industries is the name that people trust for manufacturing, exporting, and stocking of Inconel 600/601/625/800/825 Socket Screw. We are destined to provide the highest quality of the product to the customer.
We are the pioneer of the industry of manufacturing and always take good care of the quality of our products. The Inconel fasteners that we provide are the most feature-rich products that we manufacture, supply, stock, and distribute. They have a variety of features that includes having a high mechanical strength, close tolerance of dimensions, and the best finishing touch up.
The process of installation and the removal of these fasteners is a cakewalk and can be done by just following some simple set of instructions. We provide a wide array of products in the category of fasteners such as stud bolts, square bolts, hex bolts, t-head bolts, etc. All these ranges of high-quality fasteners are made available with varying grades that all have different dimensions. All this is available to you at a very convenient price.
The Grades of Inconel that our products follow include Inconel 600, Inconel 625, Inconel 601, Inconel 800, Inconel 718, Inconel 686, Inconel 625LCF, Inconel 825, and Inconel X-750.
The standards which are always followed by our range of Inconel fasteners are ASTM, ASME, SB 163, SB 517, SB 704, and SB 705.
Alloy 625 Socket Head Grub Screw, Inconel 825 Allen CSK Bolt, Inconel 600 Allen Bolt/Socket Head Cap Screw, Inconel 601 Allen Bolt/Socket Head Cap Screw, ASTM B161 Alloy N06600 Socket Screw, DIN 2.4851 CSK Allen Bolts, Alloy 800 Allen Bolt Hex Socket Head Cap Screws, NCF 600 Socket Screws Exporter in India.
Incoloy 800 Allen CSK Bolt, Incoloy 825 Socket Screw Supplier, Alloy N08800 Button Head Screws, Alloy N08825 Grub Screw/Socket Head Set Screws, Inconel 625 Button Head Screws, Inconel 600 Socket Screw Stockholder.
The various types of products that we manufacture in the range of fasteners are Stud bolts, Hex head bolts, U bolts, J bolts, T-Head bolts, wing screw, Eyebolt, Foundation bolts, Structural bolts, Socket hexagonal head screw anchor bolts, mushroom head square neck bolts, etc.
All the products are designed to provide the user with a set of features such as resistance to corrosion, optimum strength, long life of service, and a very detailed finishing. These fasteners are found to have applications in various industries which mostly deal with cryogenic temperatures. Some of its variants such as the 601 provide resist ability and prevention from corrosion from aqueous media. The Inconel 625 is known in the industry for its high strength and the resistance it provides at higher temperatures.
Inconel 600/601/625/800/825 Socket Screws Types

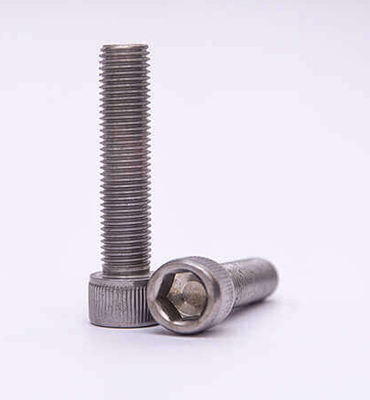

Inconel 600/601/625/800/825 Allen Bolt-Socket Screw

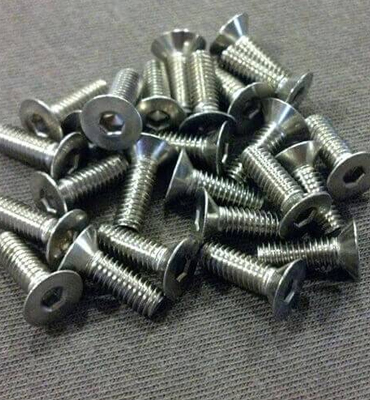

Inconel
600/601/625/800/
825 Allen CSK
Bolt

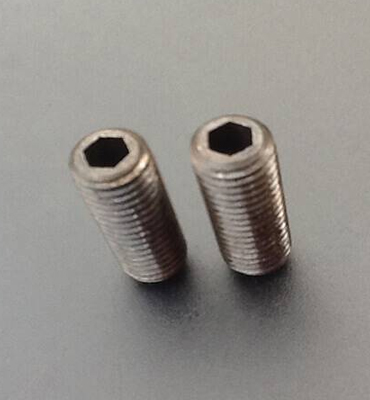

Inconel 600/601/625/800/825 Grub Screw Socket Screw

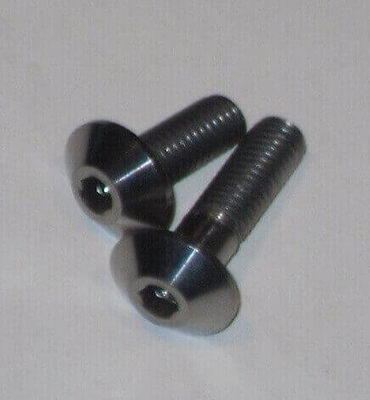

Inconel
600/601/625/800/
825 Button Head
Screw

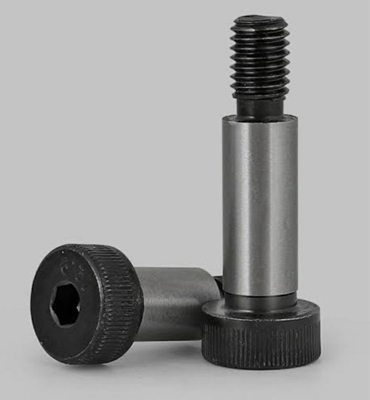

Inconel 600/601/625/800/825 Socket Head Shoulder Screw

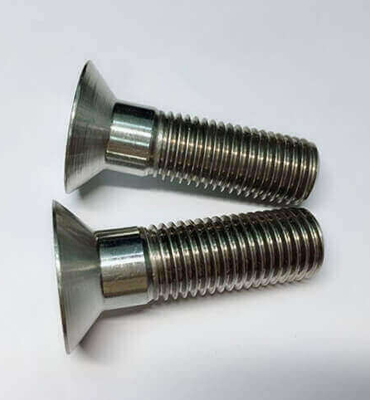

Inconel 600/601/625/800/825 Countersunk Socket Screw

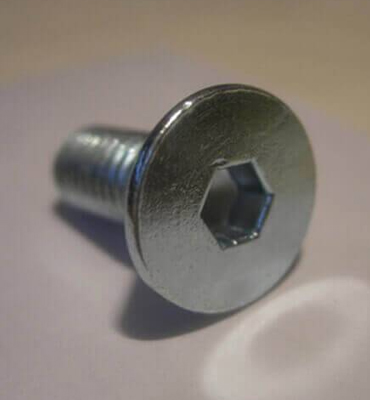

Inconel 600/601/625/800/825 Flat Head Socket
Screw
Specification of Alloy 600/601/625/800/825 Socket Screw
| Standard : | ASTM F467 / B161, ASME SF467 / SB161, F467 |
| Dimension : | ASTM, DIN, BS, GB, IS and all International Standards |
| Length : | 3 mm to 200 mm |
| Socket Screw Size : | M1.6 to M64 | Custom Sizes |
| Heat Treatment : | Annealing, Stress Relieving, Case Hardening, Quenching and Tempering. |
| Type : | Allen Bolt/Socket Head Cap Screw, Allen CSK Bolt, Grub Screw/Socket Head Set Screw, Button Head Screw etc. |
Other Properties of Incoloy 600/601/625/800/825 Socket Screw
Equivalent Grades for Inconel Alloy 600/601/625/800/825 Socket Screw
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe | - |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe | - |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb | - |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
Incoloy 600/601/625/800/825 Socket Screw Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 | - | - |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 | - | - |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 | - | - |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
| 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
Mechanical Properties of Inconel Alloy 600/601/625/800/825 Socket Screws
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40% |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30% |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5% |
| 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30% |
| 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30% |
People also search for DIN 2.4858 Socket Screw
Inconel 601 socket screw supplier in mumbai, inconel alloy 800 threaded socket screws supplier, inconel alloy n06625 socket screw, incoloy 601 grub screw socket head set screws suppliers in india, incoloy 601 fully threaded socket head cap screw, india, inconel 601 socket screws distributors, inconel alloy 625 imperial socket head cap screws suppliers in mumbai, inconel 601 socket screw manufacturer in india, inconel 1.4859 flat head cap screw, inconel alloy 825 allen bolt socket head cap screw, inconel alloy 601 socket head screws, inconel alloy 800 socket head screws, a wide range of the inconel socket screws price list, 625 inconel metric socket head cap screws dealer, alloy 2.4856 socket head cap screw, astm b161 825 inconel alloy socket low head cap screw, inconel alloy 825 socket head shoulder screws, inconel din 1.4876 socket screw, inconel alloy 600 socket head screws price, incoloy 601 socket screw manufacturer, din 1.4958 button head socket screw, inconel alloy 600 partial threaded socket head cap screws suppiler in india, incoloy 601 allen csk bolts with metric fine thread exporter, uns n08825 flange button head socket screws supplier in india, inconel alloy 600 heavy socket screw, inconel alloy n08800 countersunk socket head screw with metric fine pitch thread.
Other Inconel Alloy 600/601/625/800/825 Socket Screw Types
Socket Head Cap Screw, Socket Low Head Cap Screw, Socket Head Shoulder Screw, Countersunk Socket Head Screw, Button Head Socket Screw, Flange Button Head Socket Screw, Flat Head Cap Screw, Fully Threaded Socket Head Cap Screw, Partial Threaded Socket Head Cap Screw, Metric Socket Head Cap Screw, Imperial Socket Head Cap Screw.
Quality Assurance of Inconel 600/601/625/800/825 Socket Screws
Inconel 600/601/625/800/825 Socket Screws are manufactured and controlled to international standards such as ASTM, ASME, BS, MAlloy, EN, DIN or WERKSTOFFE. Our products undergo stringent quality tests before they are dispatched.
