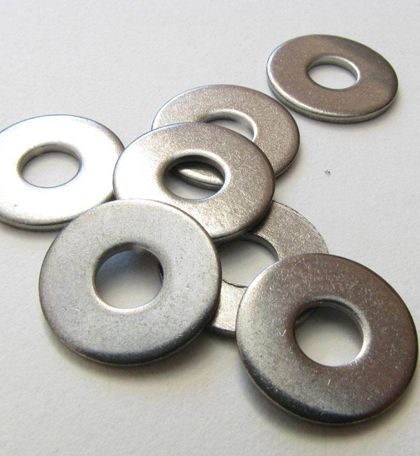

Inconel 601 Washer
Inconel 601 Washer Manufacturer in Vadodara, India
Inconel 601 Washers, Inconel Alloy 601 Washer, Alloy 601 Washers, Inconel® Alloy 601 Washers, UNS N06601 Washers Dealer, Inconel 2.4851 Washer, 601 Inconel Washer, Inconel 601 Washers Manufacturer in Vadodara, India.
GreatBolt Industries is specializing in manufacturing and supplying the good quality of wider ranges of Inconel 601 Washer. The washer is provided to the clients in both standard and custom-built specifications as per the demand of the industrialists. Washer in piping is the thin plate that is also having a hole that is used for distributing the weight of the threaded fasteners like nut/bolt. The washer is having OD that is 2 times more than the inner diameter. Washers are made up of using alloys such as Inconel, SS, etc. washers are very much important for assuring prevention all against the galvanic corrosion, mainly by insulating the steel screws from the aluminum faces.
Washers are divided into 3 types that are a plain washer, locking washer and spring washer. The plain washer spreads the load and also saves the surface being fixed and offers insulation like electrical. Locking washer is preventing loosening and fastening by saving the fastening device unscrewing rotation. Spring washer is having axial flexibility and this one is used for preventing both loosening and fastening that may occur because of vibrations. Inconel washers such as Inconel 601 fall into the family of molybdenum, nickel and chromium alloys. It is used because of the greater strength at the high temperature and also because of having very good resistance to corrosion ability. The high thermal stability is making an Inconel washer to be used in the service temperature (cryogen-982 deg C). The greater alloy content in the washer is enabling it in easily withstanding ranges of the harsh corrosive atmosphere.
Inconel 601 Tooth Washer, DIN 2.4851 Taper Washers, Inconel 601 Plain Washer, Inconel 601 Spring Washers, Nickel Alloy 601 Washer, Inconel Alloy 601 Tab Washer, Inconel 601 Star Washers, JIS NCF 601 Washers Supplier in India.
Inconel® Alloy 601 Washer, Inconel 601 Taper Washer, Inconel 601 Spring Washer, Inconel 601 Washer Stockholder, Inconel 601 Plain Washers, Inconel 601 Tab Washer Exporter.
However, in the gentle surrounding like neutral salt, seawater, getting no attacks is possible on Alloy 601 washers. Additionally in the strict corrosive atmosphere, a combination of chromium-nickel is providing resistant ability to the oxidizing substances. The molybdenum and nickel content is supplying resistance to the non-oxidizing atmosphere. Inconel washer is offering very good balances of properties. It is like temperature stability, resistance to corrosion, toughness, strength. Thus all these are making it a good product for use in different applications. The test is strictly conducted on Inconel Alloy 601 washer for its quality checking. The test done is PMI-IGC test, hardiness test and so on.
Inconel 601 Washers Types
Inconel 601 Plain
Washer
Inconel 601 Spring Washer
Inconel 601 Tooth Washer
Inconel 601 Taper Washer
Inconel 601 Tab
Washer
Inconel 601 Star
Washer
Inconel 601 Flat
Washer
Inconel 601 Dock
Washer
Inconel 601 Split
Washer
Inconel 601 Ogee
Washer
Specification of Inconel 601 Washer
| Standard : | ASTM / ASME |
| Dimension : | ASTM, DIN, BS, GB, IS and all International Standards |
| Length : | M02 to M33 |
| Washer Size : | 3 mm to 200 mm |
| Materials / Grades : | Inconel 601 |
| Type : | Plain Washer, Spring Washer, Tooth Washer, Tapper Washer, Tab Washer, Star Washer etc. |
Other Properties of Inconel 601 Washer
Equivalent Grades for Inconel 601 Washer
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
Inconel 601 Washer Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
Mechanical Properties of Inconel 601 Washer
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30% |
People also search for DIN 2.4851 Washer
A wide range of the inconel jis ncf 601 washers price list, inconel 601 washers distributors, inconel alloy 601 washer manufacturer in india, inconel® alloy 601 washer manufacturer in maharashtra, inconel 601 star washer with metric fine pitch, inconel alloy 601 tab washers, inconel 601 spring washer, inconel® alloy 601 washers dealer, inconel 601 washers exporter, inconel® alloy washer, alloy din 2.4851 plain washer, inconel alloy 601 wave washer, inconel 601 sealing washer, inconel 601 fender washer, inconel 601 taper washers suppliers in india, inconel 2.4851 belleville washer, inconel 601 washers, 601 inconel lock washer, inconel n06601 tooth washer, 601 inconel alloy square dock washers supplier, inconel alloy 601 washers, inconel 601 washers suppliers in mumbai, inconel 601 washers suppiler in india, inconel 601 washers supplier in india, 601 inconel washer supplier in india, nickel alloy 601 washers, alloy 601 washers price, inconel 601 flat washer.
Other Inconel 601 Washer Types
USS flat washers, SAE flat washers, Structural washers, Fender washer, Lock washers, spring lock washer, High collar lock washer, Finishing washers, Dock washers, Square dock washer, Bonded sealing washers, Lock washers external tooth, Lock washers internal tooth, spherical washer, Belleville washers, Wave washers.
Quality Assurance of Inconel 601 Washers
Inconel Alloy 601 Washers are manufactured and controlled to international standards such as ASTM, ASME, BS, MSS, EN, DIN or WERKSTOFFE. Our products undergo stringent quality tests before they are dispatched.
